产品详细介绍

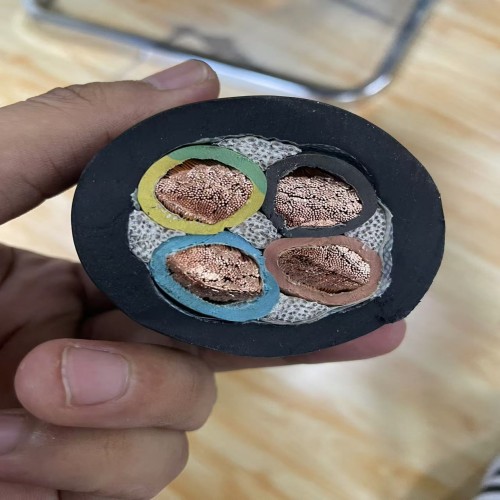

YCW-450/750V-3*70+1*50橡套软电缆
通用橡套软电缆简称橡套电缆，分为高压橡套软电缆和750V通用橡套软电缆。高压橡套软电缆用途：交流额定电压6kv及以下移动配电装置及矿山采掘机械；起重运输机械等。低压橡套软电缆适用于交流额定电压750V及以下家用电器、电动工具和各种移动式电器设备用其中分为轻型、中型和重型三种型号电缆。
我厂的野外用橡套电缆(YCW电缆，YZW电缆,橡套电缆-YZW电缆-YCW电缆-YC,YZ电缆)是为适应野外用工矿企业调整发展的需要，生产性能优良的橡皮绝缘，橡皮护套和延燃重型橡套软电缆。 天长市时丰电气有限公司www.ahbnyb.com
YCW-450/750v 重型
| 标称截面 | 导电线芯 | 平均外径mm | 20℃导体电阻≤(Ω/km) | 参考重量kg/km | |||
| mm2 | 根数/线径㎜ | 下限 | 上限 | 铜芯 | 镀锡铜芯 | YC | YCW |
| 1×1.5 | 30/0.25 | 5.6 | 7.2 | 13.3 | 13.7 | 51.9 | 57.0 |
| 1×2.5 | 49/0.25 | 6.4 | 8.0 | 7.98 | 8.2 | 73.7 | 79.5 |
| 1×4 | 56/0.30 | 7.2 | 9.0 | 4.95 | 5.09 | 110.5 | 118.7 |
| 1×6 | 84/0.30 | 8.0 | 11.0 | 3.30 | 3.39 | 132 | 167.3 |
| 1×10 | 84/0.40 | 9.8 | 13.0 | 1.91 | 1.95 | 220.6 | 243.8 |
| 1×16 | 126/0.40 | 11.0 | 14.5 | 1.21 | 1.24 | 295.1 | 311.6 |
| 1×25 | 196/0.40 | 12.5 | 16.5 | 0.780 | 0.795 | 425.6 | 446.2 |
| 1×35 | 276/0.40 | 16.5 | 21.0 | 0.386 | 0.393 | 758.4 | 788.4 |
| 1×50 | 396/0.40 | 16.5 | 21.0 | 0.386 | 0.393 | 758.4 | 788.4 |
| 1×70 | 360/0.50 | 18.5 | 24.0 | 0.272 | 0.277 | 1034.1 | 1073.7 |
| 1×95 | 475/0.50 | 21.0 | 26.0 | 0.206 | 0.210 | 1324.7 | 1369.3 |
| 1×120 | 608/0.50 | 23.0 | 28.5 | 0.161 | 0.164 | 1593.9 | 1646.3 |
| 1×150 | 756/0.50 | 25.0 | 32.0 | 0.129 | 0.132 | 1971.6 | 2063.7 |
| 1×185 | 952/0.50 | 27.5 | 34.5 | 0.160 | 0.1 | 2425.6 | 2498 |
| 1×240 | 1221/0.50 | 30.5 | 38.0 | 0.0801 | 0.0817 | 3081.3 | 3166.2 |
| 1×300 | 1525/0.50 | 33.5 | 41.5 | 0.0641 | 0.0654 | 3730.7 | 3825.2 |
| 1×400 | 2013/0.50 | 37.5 | 46.5 | 0.0486 | 0.0495 | 4934 | 5048.2 |
| 2×1.5 | 30/0.25 | 9.0 | 11.5 | 13.30 | 13.7 | 132.0 | 146.6 |
| 2×2.5 | 49/0.25 | 10.5 | 13.5 | 7.98 | 8.21 | 203.6 | 223.9 |
| 2×4 | 56/0.30 | 12.0 | 15.0 | 4.95 | 5.09 | 280.2 | 305.6 |
| 2×6 | 84/0.30 | 13.5 | 18.5 | 3.30 | 3.39 | 412.2 | 448.2 |
| 2×10 | 84/0.40 | 18.5 | 24.0 | 1.91 | 1.95 | 669.1 | 732.8 |
| 2×16 | 126/0.40 | 21.0 | 27.5 | 1.21 | 1.24 | 906.6 | 988.5 |
| 2×25 | 196/0.40 | 24.5 | 31.5 | 0.780 | 0.795 | 1144.3 | 1229.4 |
| 2×4 | 56/0.30 | 12.0 | 15.0 | 4.95 | 5.09 | 280.2 | 305.6 |
| 2×6 | 84/0.30 | 13.5 | 18.5 | 3.30 | 1.95 | 412.2 | 448.2 |
| 2×10 | 84/0.40 | 18.5 | 24.0 | 1.91 | 3.39 | 669.1 | 732.8 |
| 2×16 | 126/0.40 | 21.0 | 27.5 | 1.21 | 1.95 | 906.6 | 988.5 |
| 2×25 | 196/0.40 | 24.5 | 31.5 | 0.78 | 1.24 | 1144.3 | 1229.4 |
| 2×35 | 276/0.40 | 27.5 | 35.5 | 0.554 | 0.795 | 1505.5 | 1610.4 |
| 2×50 | 396/0.40 | 32.0 | 41.0 | 0.386 | 0.565 | 2464.2 | 2655.7 |
| 2×70 | 360/0.50 | 36.0 | 46.0 | 0.272 | 0.393 | 3254.8 | 3848.3 |
| 2×95 | 475/0.50 | 40.5 | 50.5 | 0.206 | 0.277 | 4144.3 | 4423.0 |
| 3×1.5 | 30/0.25 | 9.6 | 12.5 | 13.3 | 0.21 | 156.0 | 171.0 |
| 3×2.5 | 49/0.25 | 11.5 | 14.5 | 7.98 | 13.7 | 246.1 | 266.9 |
| 3×4 | 56/0.30 | 13.0 | 16.0 | 4.95 | 8.21 | 305.6 | 325.2 |
| 3×6 | 84/0.30 | 20.0 | 25.5 | 1.91 | 5.09 | 822.3 | 895.6 |
| 3×10 | 84/0.40 | 20.0 | 25.5 | 1.91 | 1.95 | 822.3 | 895.6 |
| 3×16 | 126/0.40 | 22.5 | 29.5 | 1.21 | 1.24 | 1075.8 | 1152.8 |
| 3×25 | 196/0.40 | 26.5 | 34.0 | 1.780 | 0.795 | 1514.3 | 1725.4 |
| 3×35 | 276/0.40 | 29.5 | 38.0 | 0.554 | 0.565 | 789.3 | 1956.0 |
| 3×50 | 396/0.40 | 34.5 | 43.5 | 0.386 | 0.393 | 2880.3 | 3057.8 |
| 3×70 | 360/0.50 | 38.5 | 49.5 | 0.272 | 0.277 | 3879.3 | 4109.2 |
| 3×95 | 475/0.50 | 44.0 | 54.0 | 0.206 | 0.210 | 4974.5 | 5250.8 |
| 3×120 | 608/0.50 | 48.0 | 59.0 | 0.161 | 0.164 | 5933.3 | 6253.3 |
| 3×150 | 756/0.50 | 53.0 | 66.5 | 0.129 | 0.132 | 7343.4 | 7740.9 |
| 3×1.5 | 30/0.25 | 10.5 | 15.5 | 13.3 | 13.7 | 188.6 | 205.6 |
| 3×2.5 | 49/0.25 | 12.5 | 15.5 | 7.98 | 8.21 | 300.5 | 323.7 |
| 3×4 | 56/0.30 | 14.5 | 18.0 | 4.95 | 5.09 | 438.4 | 469.5 |
| 3×6 | 84/0.30 | 16.5 | 22.0 | 3.30 | 3.39 | 643.2 | 686.0 |
| 3×10 | 84/0.40 | 21.5 | 28.0 | 1.91 | 1.95 | 1106.0 | 1097.7 |
| 3×16 | 126/0.40 | 24.5 | 32.0 | 1.21 | 1.24 | 1380.0 | 1473.9 |
| 3×25 | 196/0.40 | 29.5 | 37.5 | 0.780 | 0.795 | 2011.8 | 2137.3 |
| 3×35 | 276/0.40 | 33.3 | 42.0 | 0.554 | 0.565 | 2637.2 | 2792.7 |
| 3×50 | 396/0.40 | 38.0 | 48.5 | 0.386 | 0.393 | 3634.4 | 3838.4 |
| 3×70 | 360/0.50 | 43.0 | 55.0 | 0.272 | 0.277 | 4861.7 | 5118.0 |
| 3×95 | 475/0.50 | 49.0 | 60.5 | 0.206 | 0.21 | 6245.5 | 6551.0 |
| 3×120 | 608/0.50 | 53.0 | 65.5 | 0.161 | 0.164 | 7479.6 | 7836.0 |
| 3×150 | 756/0.50 | 59.0 | 74.0 | 0.129 | 0.132 | 9302.4 | 9753.0 |
| 3×2.5+1×1.5 | 49/0.25+30/0.25 | 12.5 | 15.5 | 7.98 | 8.21 | 282.7 | 305.6 |
| 3×4+1×1.5 | 56/0.30+49/0.25 | 14.5 | 17.5 | 4.95 | 5.09 | 406.8 | 435.7 |
| 3×6+1×4 | 84/0.30+56/0.30 | 16.0 | 21.0 | 3.3 | 3.39 | 600.1 | 640.3 |
| 3×10+1×6 | 84/0.40+84/0.30 | 20.5 | 26.5 | 1.91 | 1.95 | 925.1 | 99.9 |
| 3×16+1×6 | 126/0.40+84/0.40 | 23.0 | 30.5 | 1.21 | 1.24 | 1253.9 | 1341.5 |
| 3×25+1×10 | 196/0.40+84/0.40 | 28.0 | 35.5 | 0.780 | 0.795 | 1823.2 | 1941.3 |
| 3×35+1×10 | 276/0.40+84/0.40 | 28.0 | 38.5 | 0.554 | 0.565 | 1980.4 | 2115.9 |
| 3×50+1×16 | 396/0.40+126/0.40 | 30.0 | 46.0 | 0.386 | 0.393 | 3243.4 | 3439.7 |
| 3×70+1×25 | 360/0.50+196/0.40 | 36.0 | 51.0 | 0.272 | 0.277 | 4504.4 | 4772.6 |
| 3×95+1×35 | 475/0.50+276/0.40 | 40.0 | 55.0 | 0.206 | 0.21 | 5553.5 | 5838.3 |
| 3×120+1×35 | 608/0.50+276/0.40 | 46.5 | 59.0 | 0.161 | 0.164 | 6362.1 | 6662.4 |
| 3×150+1×50 | 756/0.50+396/0.40 | 52.0 | 66.0 | 0.129 | 0.132 | 7889.3 | 8252.6 |
| 5×1.5 | 30/0.25 | 11.5 | 15.0 | 13.3 | 13.7 | 221.4 | 240.6 |
| 5×2.5 | 49/0.25 | 13.5 | 17.0 | 7.98 | 8.21 | 347.6 | 372.7 |
| 5×4 | 56/0.30 | 16.0 | 19.5 | 4.95 | 5.09 | 497.1 | 528.9 |
| 5×6 | 84/0.30 | 18.0 | 24.5 | 3.3 | 3.39 | 765.1 | 815.0 |
| 5×10 | 84/0.40 | 24.0 | 31.0 | 1.91 | 1.95 | 1205.2 | 1289.0 |
| 5×16 | 126/0.40 | 27.0 | 35.5 | 1.21 | 1.24 | 1668.8 | 1777.0 |
| 5×25 | 196/0.40 | 32.5 | 41.5 | 0.780 | 0.795 | 2434.3 | 2587.1 |
